TYM T2025P vs TYM T234

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the TYM T2025P leads 5 categories to 1 (3 tied). Machine pages: TYM T2025P and TYM T234.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	TYM T2025P	TYM T234
Engine HP (hp)	▲ 24.7 hp	24.4 hp
PTO HP (hp)	18.3 hp	18.3 hp
Weight (lb)	▲ 2,207 lb	1,907 lb
Loader Lift (lb)	1,380 lb	1,380 lb
3-Pt Lift (24 in) (lb)	560 lb	▲ 1,102 lb
Lift Height (in)	▲ 87.7 in	86.9 in
Breakout Force (lbf)	2,059 lbf	2,059 lbf
Hydraulic Flow (gpm)	▲ 6.9 gpm	6.7 gpm
Travel Speed (mph)	▲ 13.6 mph	9.6 mph

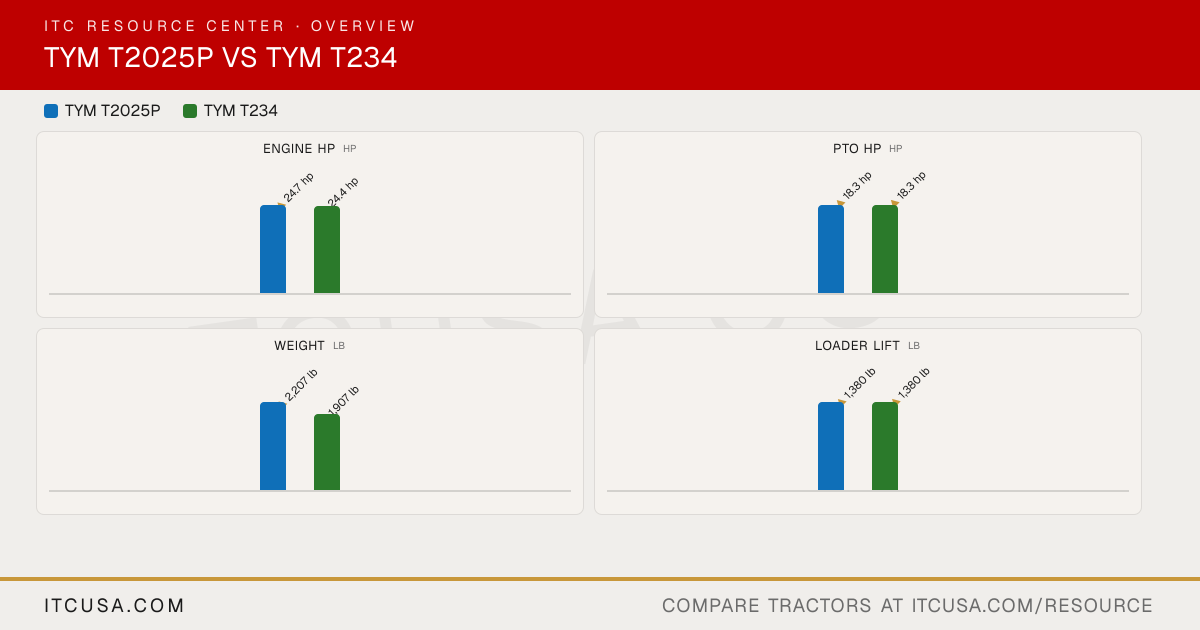

The headline numbers at a glance.

TYM T2025PTYM T234

Engine HPhp

▲24.7 hp

24.4 hp

PTO HPhp

▲18.3 hp

Weightlb

▲2,207 lb

1,907 lb

Loader Liftlb

▲1,380 lb

3-Pt Lift (24 in)lb

560 lb

▲1,102 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYMT2025P	TYMT234


Engine Manufacturer	Yanmar	Mitsubishi
Engine Model	3TNV80F-NXDKTFX	S3L2
Engine Type	3-cylinder, naturally aspirated diesel	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	77.3 in³	80.4 in³
Rated Engine Speed	3000 rpm	2500 rpm
Engine Power (Gross)	24.7 hp	24.4 hp
PTO Power	18.3 hp	18.3 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Not Published	Liquid-cooled
Air Cleaner	Single dry	Dual dry
Fuel System	IDI	Indirect fuel injection
Alternator	40 A, 12 V	50 A, 12 V

Pump Type	Single gear pump	Dual gear pump
Implement Flow	4.17 gpm	4.4 gpm
Steering Flow	2.77 gpm	2.3 gpm
Total Hydraulic Flow	6.94 gpm	6.7 gpm
Overall Hydraulic Pump Flow	6.94 gpm	6.7 gpm
Hydraulic System Type	Not Published	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Not Published	1

Fuel Tank Capacity	8.4 gal	6.6 gal
Coolant Capacity	0.95 gal	5.9 qt
Crankcase Capacity	Not Published	4.5 qt
Transmission / Hydraulic System Capacity	4.49 gal	5.8 gal
Front Axle Fluid Capacity	1.18 gal	4.7 qt

PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Available (Mid-PTO kit)	Available
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,550 lb	1,534 lb
Hitch Lift Capacity (at 24”)	560 lb	1,102 lb
Lift Control Type	Position control	Position control

Transmission Type	HST	HST
No. of Speeds	2	Infinite / 2 Range
Max Travel Speed (Forward)	13.57 mph	9.6 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Differential lock	Not Published

Frame Type	Not Published	Not Published
Steering	Hydraulic	Hydrostatic
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Mechanical suspension seat	Not Published
Front Axle Type	Four-wheel drive (standard)	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	56.29 in	52.8 in
Wheelbase	61.02 in	58.3 in
Ground Clearance	10.23 in	7.71 in
Min. Turn Radius without Brakes	110.23 in	105.5 in
Height to Top of ROPS	85.94 in	89.8 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	105.11 in (with 3-point hitch)	107.8 in (with 3-point hitch)

Tractor Weight (Base)	2,207 lb	1,907 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R3 Turf, R4 Industrial, Hybrid	R4 Industrial
R1 Agricultural - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R3 Turf - Front	23x8.5-12	Not Published
R3 Turf - Rear	33x12.5-16.5	Not Published
R4 Industrial - Front	23x8.5-14	23x8.5-12
R4 Industrial - Rear	14-17.5	12x16.5

Quick Attach Loader System	L2025P: Quick attach mechanism	TX2000: Quick attach mechanism
Loader Model	L2025P	TX2000
Loader Lift Height	L2025P: 87.7 in	TX2000: 86.9 in (at pivot pin)
Loader Lift Capacity (Full Height)	L2025P: 1,380 lb (at pivot pin)	TX2000: 1,380 lb (at pivot pin)
Loader Breakout Force	L2025P: 2,059 lb (at pivot pin, ground level)	TX2000: 2,059 lb (at pivot pin, ground level)

Warranty Length & Coverage	Basic 2 years or 2,000 hours; powertrain 3,000 hours maximum, parts and labor; loaders and backhoes 12 months	Not Published

Find a TYM dealer near you

TYM T2025P vs TYM T234: Quick Answers

Which has more horsepower, the TYM T2025P or the TYM T234?: The TYM T2025P leads on engine hp at 24.7 hp hp, compared to 24.4 hp hp for the TYM T234.
Which has more PTO horsepower, the TYM T2025P or the TYM T234?: They are effectively tied: both machines are rated at 18.3 hp hp for pto hp.
Which is heavier, the TYM T2025P or the TYM T234?: The TYM T2025P leads on weight at 2,207 lb lb, compared to 1,907 lb lb for the TYM T234.
Which has more loader lift capacity, the TYM T2025P or the TYM T234?: They are effectively tied: both machines are rated at 1,380 lb lb for loader lift.
Which has more three-point hitch lift capacity, the TYM T2025P or the TYM T234?: The TYM T234 leads on 3-pt lift (24 in) at 1,102 lb lb, compared to 560 lb lb for the TYM T2025P.
