Which has more horsepower, the TYM T224 or the TYM T264?

The TYM T264 leads on engine hp at 24 hp hp, compared to 21.5 hp hp for the TYM T224.

Which has more PTO horsepower, the TYM T224 or the TYM T264?

The TYM T264 leads on pto hp at 18.3 hp hp, compared to 15.1 hp hp for the TYM T224.

Which has more loader lift capacity, the TYM T224 or the TYM T264?

The TYM T264 leads on loader lift at 1,380 lb lb, compared to 617 lb lb for the TYM T224.

Which has more three-point hitch lift capacity, the TYM T224 or the TYM T264?

The TYM T264 leads on 3-pt lift (24 in) at 1,102 lb lb, compared to 679 lb lb for the TYM T224.

TYM T224 vs TYM T264

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the TYM T264 leads 8 categories to 0. Machine pages: TYM T224 and TYM T264.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	TYM T224	TYM T264
Engine HP (hp)	21.5 hp	▲ 24 hp
PTO HP (hp)	15.1 hp	▲ 18.3 hp
Weight (lb)	—	2,564 lb
Loader Lift (lb)	617 lb	▲ 1,380 lb
3-Pt Lift (24 in) (lb)	679 lb	▲ 1,102 lb
Lift Height (in)	71.3 in	▲ 86.9 in
Breakout Force (lbf)	1,235 lbf	▲ 2,059 lbf
Hydraulic Flow (gpm)	6.7 gpm	▲ 7.1 gpm
Travel Speed (mph)	8.4 mph	▲ 12.9 mph

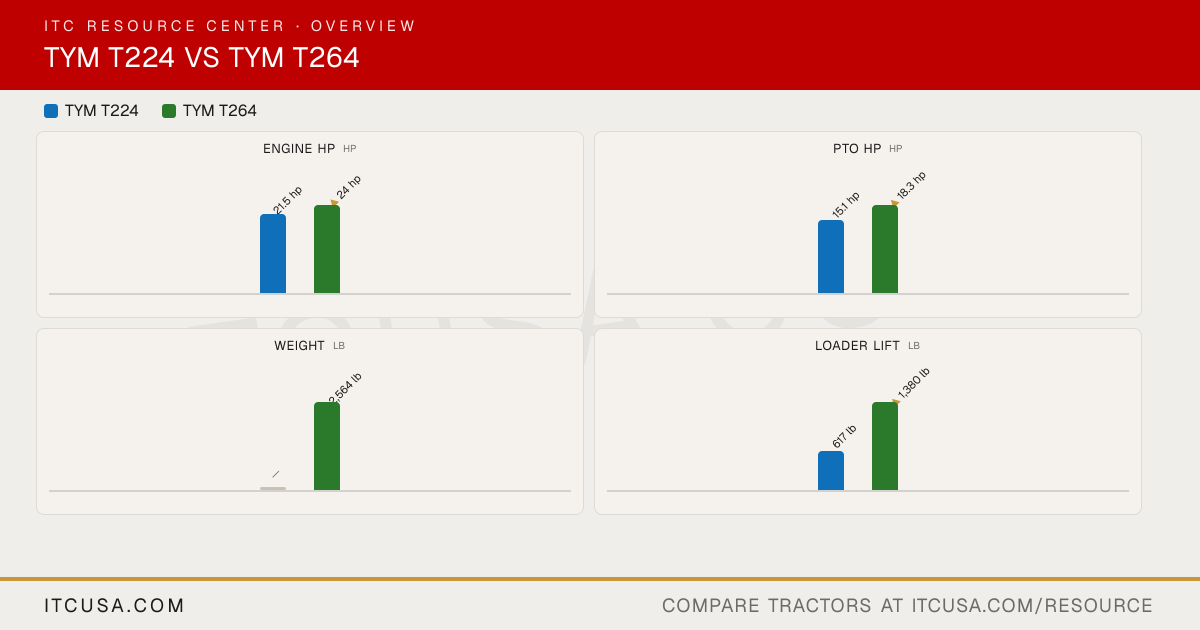

The headline numbers at a glance.

TYM T224TYM T264

Engine HPhp

21.5 hp

▲24 hp

PTO HPhp

15.1 hp

▲18.3 hp

Weightlb

—

2,564 lb

Loader Liftlb

617 lb

▲1,380 lb

3-Pt Lift (24 in)lb

679 lb

▲1,102 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYMT224	TYMT264


PTO Power	15.1 hp	18.3 hp
Alternator	40 A, 12 V	50 A, 12 V
Air Cleaner	Single dry	Single dry
Engine Type	3-cylinder, naturally aspirated diesel	3-cylinder, naturally aspirated diesel
Fuel System	IDI	IDI
Displacement	60.6 in³	71.7 in³
No. of Cylinders	3	3
Rated Engine Speed	3200 rpm	2800 rpm
Cooling System Type	Water-cooled	Not Published
Engine Manufacturer	Yanmar	TYM
Engine Power (Gross)	21.5 hp	24 hp
Engine Emissions Constraints	Tier 4	Not Published

Weight with ROPS and Loader	Not Published	2,564 lb
Weight with Cab and Loader	Not Published	Not Applicable

Warranty Length & Coverage	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Single gear pump	Dual gear pump
Steering Flow	2.1 gpm	2.7 gpm
Implement Flow	4.6 gpm	4.4 gpm
Total Hydraulic Flow	6.7 gpm	7.1 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	6.7 gpm	7.1 gpm
No. of Optional Remote Valves	1	1
No. of Standard Remote Valves	Not Published	0

PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position control	Position control
Hitch Lift Capacity	1,100 lb	1,534 lb
Mid-PTO Availability	Available	Available
Category, 3-Point Hitch	Category I (Narrow)	Category I
Hitch Lift Capacity (at 24”)	679 lb	1,102 lb

R3 Turf - Rear	Turf Master 24x12.00-12 NHS TL 4PR	Multi-Trac CS 33x12.50-16.5 NHS TL 4PR
R3 Turf - Front	Turf Master 16x7.50-8 NHS TL 4PR	Turf Master 23x8.50-12 NHS TL 4PR
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R3 Turf, R4 Industrial
R4 Industrial - Rear	WT300 26x12.00-12 NHS TL 4PR	Trac Chief 12-16.5 NHS TL 6PR
R4 Industrial - Front	WT300 18x8.5-10 NHS TL 4PR	Trac Chief 23x8.50-12 NHS TL 4PR
R1 Agricultural - Rear	BAR R 24x12.00-12	Not Published
R1 Agricultural - Front	BAR F 16x6.50-8	Not Published

Coolant Capacity	3.7 qt	5.9 qt
Crankcase Capacity	1.9 qt	4.5 qt
Fuel Tank Capacity	6.6 gal	6.6 gal
Front Axle Fluid Capacity	2.6 qt	4.7 qt
Transmission / Hydraulic System Capacity	3.6 gal	4.7 gal

Loader Lift Height	71.3 in	86.9 in
Loader Breakout Force	1,235 lb	2,059 lb
Quick Attach Loader System	TX22H: Quick attach mechanism	TX2000: Quick attachment assembly
Loader Lift Capacity (Full Height)	617 lb	1,380 lb

Clutch	Not applicable	Dry single plate
No. of Speeds	Infinite 2-Range	Infinite 2-Range
Transmission Type	HST	HST
Max Travel Speed (Forward)	8.4 mph	12.9 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Differential lock	Not Published

Brakes	Wet disc	Wet disc
Steering	Hydrostatic	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	53.1 in	58.3 in
Overall Width	44.5 in	52.8 in
Ground Clearance	8.3 in	7.7 in
Height to Top of ROPS	86.6 in	89.8 in
Height to Top of Cab Model	Not Published	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	86.6 in	105.5 in
Overall Length with 3-Point Hitch	94.2 in	107.8 in

Accessories that fit	None tagged yet	TYM T234 / T264 Brush Guard $399.99 Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection TYM T264 / T25 Tractor Step $145.00

TYM T224 vs TYM T264: Quick Answers

Which has more horsepower, the TYM T224 or the TYM T264?: The TYM T264 leads on engine hp at 24 hp hp, compared to 21.5 hp hp for the TYM T224.
Which has more PTO horsepower, the TYM T224 or the TYM T264?: The TYM T264 leads on pto hp at 18.3 hp hp, compared to 15.1 hp hp for the TYM T224.
Which has more loader lift capacity, the TYM T224 or the TYM T264?: The TYM T264 leads on loader lift at 1,380 lb lb, compared to 617 lb lb for the TYM T224.
Which has more three-point hitch lift capacity, the TYM T224 or the TYM T264?: The TYM T264 leads on 3-pt lift (24 in) at 1,102 lb lb, compared to 679 lb lb for the TYM T224.
