Which has more horsepower, the Bad Boy Tractors 4035 or the Bad Boy Tractors 5045 Cab?

The Bad Boy Tractors 5045 Cab leads on engine hp at 48 hp hp, compared to 34.9 hp hp for the Bad Boy Tractors 4035.

Which has more PTO horsepower, the Bad Boy Tractors 4035 or the Bad Boy Tractors 5045 Cab?

The Bad Boy Tractors 5045 Cab leads on pto hp at 38.4 hp hp, compared to 30 hp hp for the Bad Boy Tractors 4035.

Which is heavier, the Bad Boy Tractors 4035 or the Bad Boy Tractors 5045 Cab?

The Bad Boy Tractors 5045 Cab leads on weight at 4,349 lb lb, compared to 3,496.5 lb lb for the Bad Boy Tractors 4035.

Which has more loader lift capacity, the Bad Boy Tractors 4035 or the Bad Boy Tractors 5045 Cab?

The Bad Boy Tractors 5045 Cab leads on loader lift at 2,700 lb lb, compared to 2,200 lb lb for the Bad Boy Tractors 4035.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 or the Bad Boy Tractors 5045 Cab?

They are effectively tied: both machines are rated at 2,425 lb lb for 3-pt lift (24 in).

Bad Boy Tractors 4035 vs Bad Boy Tractors 5045 Cab

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the Bad Boy Tractors 5045 Cab leads 6 categories to 1 (2 tied). Machine pages: Bad Boy Tractors 4035 and Bad Boy Tractors 5045 Cab.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 4035	Bad Boy Tractors 5045 Cab
Engine HP (hp)	34.9 hp	▲ 48 hp
PTO HP (hp)	30 hp	▲ 38.4 hp
Weight (lb)	3,496.5 lb	▲ 4,349 lb
Loader Lift (lb)	2,200 lb	▲ 2,700 lb
3-Pt Lift (24 in) (lb)	2,425 lb	2,425 lb
Lift Height (in)	104 in	▲ 107.7 in
Breakout Force (lbf)	3,660 lbf	3,660 lbf
Hydraulic Flow (gpm)	12.6 gpm	▲ 16.4 gpm
Travel Speed (mph)	▲ 19.1 mph	16 mph

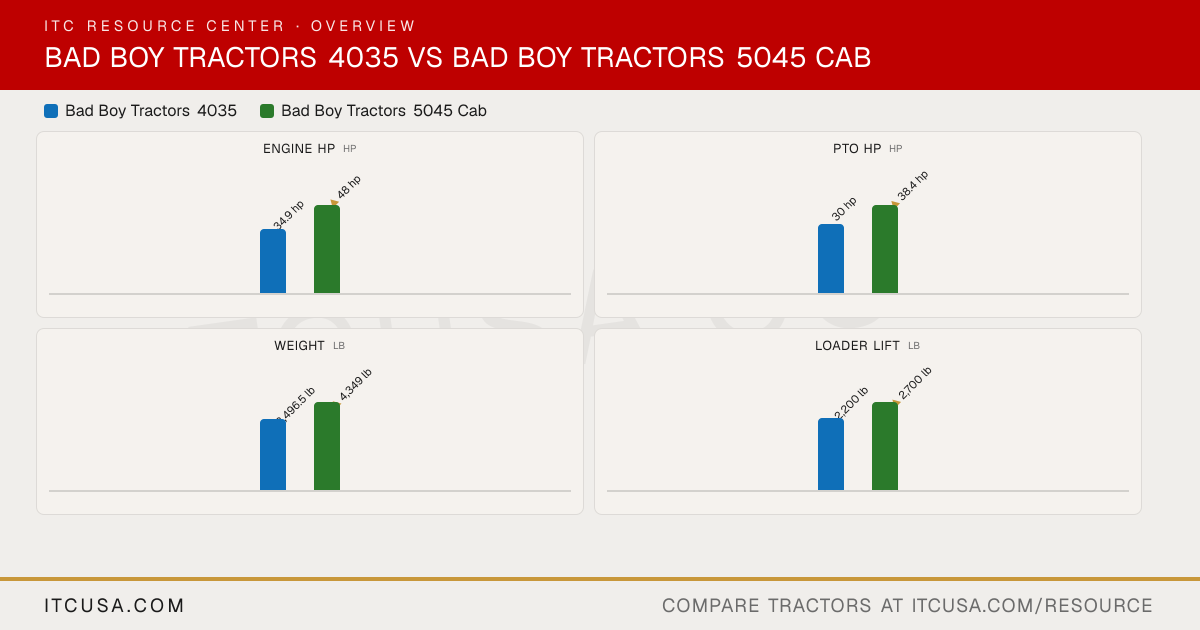

The headline numbers at a glance.

Bad Boy Tractors 4035Bad Boy Tractors 5045 Cab

Engine HPhp

34.9 hp

▲48 hp

PTO HPhp

30 hp

▲38.4 hp

Weightlb

3,496.5 lb

▲4,349 lb

Loader Liftlb

2,200 lb

▲2,700 lb

3-Pt Lift (24 in)lb

▲2,425 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035	Bad Boy Tractors5045 Cab


PTO Power	30 hp	38.4 hp
Alternator	50 A, 12 V	70 A, 12 V
Air Cleaner	Not Published	Dry Element
Engine Type	3 Cylinder, Water-Cooled, Diesel	4 Cylinder Diesel
Fuel System	Diesel fuel	Diesel fuel injection system
Displacement	104.7 in³	139.5 in³
No. of Cylinders	3	4
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Water cooled	Liquid cooled (Water cooled)
Engine Manufacturer	A1700N4-BUTC_4	Not clearly specified; engines are model A2300N3 (Natural) and A2300T11 (Turbo)
Engine Power (Gross)	34.9 hp	48 hp
Engine Emissions Constraints	EPA Final Tier4	DPF / DOC

Tractor Weight (Base)	3,496.5 lb (3,497 lbs) for ROPS MODEL; 3,728 lb (3,728 lbs) for CABIN MODEL	4,349 lbs for Cabin models; 3,831-3,836 lbs (1,738-3,836 lb) for ROPS models
Weight with ROPS and Loader	3163 lbs	Not Applicable
Weight with Cab and Loader	3,728 lbs	4,349 lb (tractor only)

Warranty Length & Coverage	6-year powertrain warranty	6-year powertrain warranty

Pump Type	Not Published	Hydrostatic power steering pump
Steering Flow	4.4 gpm	5.0 gpm
Implement Flow	8.2 gpm	5045CS: 11.4 gpm; 5045CH: 10.7 gpm
Total Hydraulic Flow	12.6 gpm (4.4+8.2)	5045CS: 16.4 gpm; 5045CH: 15.7 gpm
Hydraulic System Type	Open Center	Not Published
System Operating Pressure	180 - 407.9 lbf/cm² for control valve	Not specified in document
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	12.6 gpm	5045CS: 16.4 gpm; 5045CH: 15.7 gpm
No. of Optional Remote Valves	Optional (up to 2)	Not Published
No. of Standard Remote Valves	Not Published	Not Published

PTO Rear	540 RPM	540 / 540E rpm
PTO Type	Independent	Independent
Lift Control Type	Position Control	Position
Hitch Lift Capacity	3,306.9 lb	3,306 lb
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Cat 1	Category 1
Hitch Lift Capacity (at 24”)	2,425 lb	2,425 lb

R3 Turf - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
Tire Size & Options	Std (manual): 8.0-16 / 12.4-24; IND (website): 28X8.50-15 / 43X16.00-20	R1 Agricultural
R4 Industrial - Rear	43X16.00-20	Not Published
R4 Industrial - Front	28X8.50-15	Not Published
R1 Agricultural - Rear	12.4-24 6PR	13.6-26
R1 Agricultural - Front	8.0-16 4PR	9.5-16

Coolant Capacity	1.32 gal	1.56 gal for Cabin; 2.08 gal for ROPS
Crankcase Capacity	1.14 gal	1.20 gal
Fuel Tank Capacity	7.13 gal	11.8 gal
Front Axle Fluid Capacity	Not Published	1.90 gal
Transmission / Hydraulic System Capacity	9.77 u.s. gal (37 ℓ) HST	10.04 gal

Loader Lift Height	104 in	107.7 in (pivot pin)
Loader Breakout Force	3,660 lb	3,660 lb
Quick Attach Loader System	SSQA	SSQA
Loader Lift Capacity (Full Height)	2,200 lb (at pivot pin)	2,700 lb

Clutch	None (HST)	Wet, multi-disc
No. of Speeds	3 Range	5045CS: 16F/16R; 5045CH: 4-range
Transmission Type	HST (3-range)	Synchromesh (MEC models) or HST (hydraulic shuttle transmission)
Max Travel Speed (Forward)	19.08 mph (range C)	16.0 mph
Max Travel Speed (Reverse)	19.08 mph (range C)	15.2 mph
Differential Lock & Limited Slip Options	Differential lock	Rear differential lock

Brakes	Wet multi-disc	Wet, Multi-disc
Steering	Fully hydraulic power steering	Power steering
Frame Type	Not Published	Compact utility tractor, 4WD
Front Axle Type	Cast Iron	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Deluxe suspension seat

Wheelbase	65.7 in	71.1 in.
Overall Width	56.7 in	64.9 in.
Overall Length	134.88 in.	127.4 in. with 3PT
Ground Clearance	15 in	15.5 in. with 4WD
Height to Top of ROPS	96.85 in	97.0 in. for Cabin; 98.4 in. for ROPS
Height to Top of Cab Model	Not Applicable	97.0 in
Height to Top of ROPS (folded)	Not Published	Not Applicable
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	134.88 in	127.4 in
