LS Tractor MT335H vs LS Tractor MT235E

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 6 measurable specs, the LS Tractor MT335H leads 4 categories to 1 (1 tied). Machine pages: LS Tractor MT335H and LS Tractor MT235E.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	LS Tractor MT335H	LS Tractor MT235E
Engine HP (hp)	35 hp	35 hp
PTO HP (hp)	28 hp	▲ 29.7 hp
Weight (lb)	▲ 3,285 lb	2,866 lb
Loader Lift (lb)	▲ 2,185 lb	2,153 lb
3-Pt Lift (24 in) (lb)	▲ 1,808 lb	1,433 lb
Lift Height (in)	n/a	94 in
Breakout Force (lbf)	n/a	3,579 lbf
Hydraulic Flow (gpm)	▲ 13.7 gpm	12.3 gpm
Travel Speed (mph)	n/a	14.3 mph

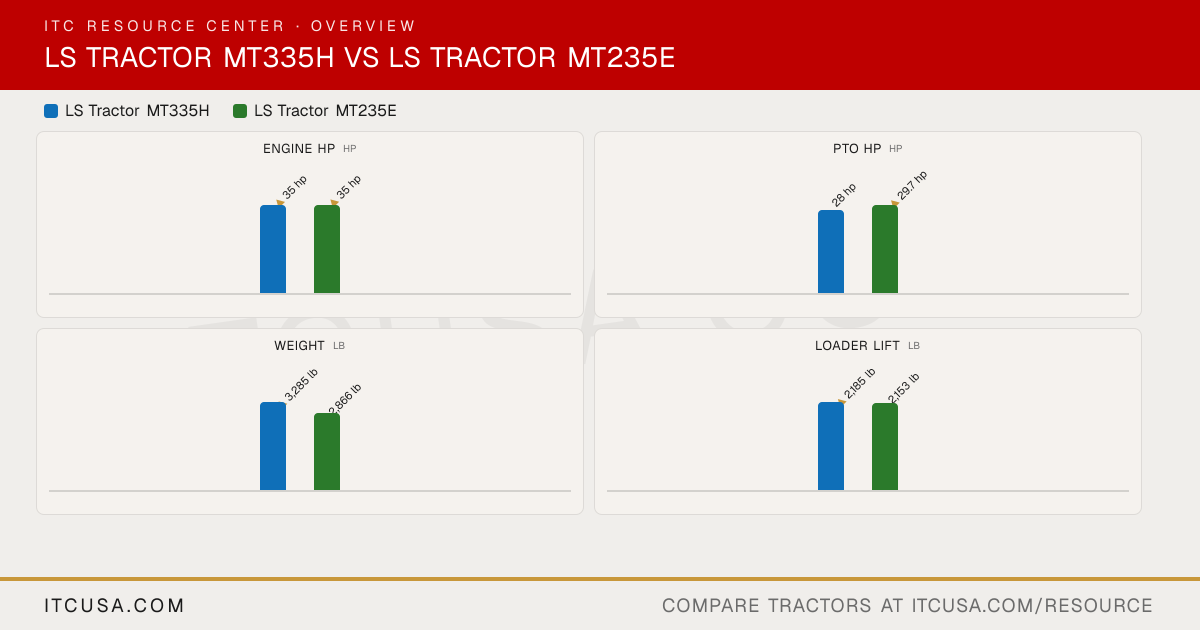

The headline numbers at a glance.

LS Tractor MT335HLS Tractor MT235E

Engine HPhp

▲35 hp

PTO HPhp

28 hp

▲29.7 hp

Weightlb

▲3,285 lb

2,866 lb

Loader Liftlb

▲2,185 lb

2,153 lb

3-Pt Lift (24 in)lb

▲1,808 lb

1,433 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorMT335H	LS TractorMT235E


Engine Manufacturer	LS Mtron	LS
Engine Model	L3C19-T	L3C19-D2
Engine Type	3 Cylinder, CRDI, water-cooled turbo diesel	3-cylinder, liquid-cooled, diesel, naturally aspirated, CRDI
No. of Cylinders	3	3
Displacement	114.7 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	35 hp
PTO Power	28 hp	29.7 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry	Dry
Fuel System	CRDI	CRDI (Delphi common rail direct injection)
Alternator	85 A, 12 V	70 A, 12 V

Pump Type	Gear pump, engine drive	Gear pump, engine driven
Implement Flow	8.2 gpm	8.2 gpm
Steering Flow	5.5 gpm	4.1 gpm
Total Hydraulic Flow	13.7 gpm	12.3 gpm
Overall Hydraulic Pump Flow	13.7 gpm	12.3 gpm
Hydraulic System Type	Open center	Open center system, position control
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	2 Pair	None
No. of Optional Remote Valves	Not Published	1 or 2 pairs (optional)

Fuel Tank Capacity	10.6 gal	7.4 gal
Coolant Capacity	Not Published	1.9 gal
Crankcase Capacity	Not Published	1.5 gal
Transmission / Hydraulic System Capacity	Not Published	8.5 gal
Front Axle Fluid Capacity	Not Published	1.7 gal

PTO Type	Independent	Independent (wet disc clutch)
PTO Rear	540 rpm	Standard (540 rpm)
Mid-PTO Availability	Optional (2,000 rpm)	Optional (2,000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,808 lb	1,808 lb
Hitch Lift Capacity (at 24”)	Not Published	1,433 lb
Lift Control Type	Position & Draft	Position control

Transmission Type	Hydrostatic (HST)	Synchro Shuttle
No. of Speeds	Infinite, 3 ranges (HST)	F12 x R12
Max Travel Speed (Forward)	Not Published	14.33 mph
Max Travel Speed (Reverse)	Not Published	13.63 mph
Clutch	Not Published	Dry single clutch
Differential Lock & Limited Slip Options	Mechanical differential lock (pedal)	Mechanical pedal type

Frame Type	Not Published	Not Published
Steering	Hydrostatic Power Steering	Hydrostatic power steering
Brakes	Wet, Multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	Front wheel mechanical assist (4WD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	Not Published	54 in
Wheelbase	66 in	69 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	10.79 ft (left); 11.02 ft (right)
Height to Top of ROPS	93 in	88 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Applicable	Not Published
Overall Length	124.3 in (frame to link)	121 in (frame to link)

Tractor Weight (Base)	3,285 lb	2,866 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Applicable	Not Published

Tire Size & Options	Ag, Industrial, Turf	Ag, industrial or turf tires at no additional cost
R1 Agricultural - Front	9.5-16	7-14
R1 Agricultural - Rear	14.9-24	11.2-24
R3 Turf - Front	25x8.5-14	25x8.50-14
R3 Turf - Rear	41x14-20	41x14-20
R4 Industrial - Front	25x8.5-14	27x8.50-14
R4 Industrial - Rear	43x16-20	43x16-20

Quick Attach Loader System	LL3116	Not Published
Loader Model	Not Published	LL3302
Loader Lift Height	Not Published	94 in
Loader Lift Capacity (Full Height)	LL3116: 2,185 lb	LL3302: 2,153 lb (at pivot pin, full height)
Loader Breakout Force	Not Published	LL3302: 3,579 lb (at pivot pin)

Warranty Length & Coverage	6-year limited powertrain warranty	6-year limited warranty

Find a LS Tractor dealer near you

LS Tractor MT335H vs LS Tractor MT235E: Quick Answers

Which has more horsepower, the LS Tractor MT335H or the LS Tractor MT235E?: They are effectively tied: both machines are rated at 35 hp hp for engine hp.
Which has more PTO horsepower, the LS Tractor MT335H or the LS Tractor MT235E?: The LS Tractor MT235E leads on pto hp at 29.7 hp hp, compared to 28 hp hp for the LS Tractor MT335H.
Which is heavier, the LS Tractor MT335H or the LS Tractor MT235E?: The LS Tractor MT335H leads on weight at 3,285 lb lb, compared to 2,866 lb lb for the LS Tractor MT235E.
Which has more loader lift capacity, the LS Tractor MT335H or the LS Tractor MT235E?: The LS Tractor MT335H leads on loader lift at 2,185 lb lb, compared to 2,153 lb lb for the LS Tractor MT235E.
Which has more three-point hitch lift capacity, the LS Tractor MT335H or the LS Tractor MT235E?: The LS Tractor MT335H leads on 3-pt lift (24 in) at 1,808 lb lb, compared to 1,433 lb lb for the LS Tractor MT235E.

More Head-to-Heads

Category Verdict

Spec	LS Tractor MT335H	LS Tractor MT235E
Engine HP (hp)	35 hp	35 hp
PTO HP (hp)	28 hp	▲ 29.7 hp
Weight (lb)	▲ 3,285 lb	2,866 lb
Loader Lift (lb)	▲ 2,185 lb	2,153 lb
3-Pt Lift (24 in) (lb)	▲ 1,808 lb	1,433 lb
Lift Height (in)	n/a	94 in
Breakout Force (lbf)	n/a	3,579 lbf
Hydraulic Flow (gpm)	▲ 13.7 gpm	12.3 gpm
Travel Speed (mph)	n/a	14.3 mph

The headline numbers at a glance.

LS Tractor MT335HLS Tractor MT235E

Engine HPhp

▲35 hp

PTO HPhp

28 hp

▲29.7 hp

Weightlb

▲3,285 lb

2,866 lb

Loader Liftlb

▲2,185 lb

2,153 lb

3-Pt Lift (24 in)lb

▲1,808 lb

1,433 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorMT335H	LS TractorMT235E


Engine Manufacturer	LS Mtron	LS
Engine Model	L3C19-T	L3C19-D2
Engine Type	3 Cylinder, CRDI, water-cooled turbo diesel	3-cylinder, liquid-cooled, diesel, naturally aspirated, CRDI
No. of Cylinders	3	3
Displacement	114.7 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	35 hp
PTO Power	28 hp	29.7 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry	Dry
Fuel System	CRDI	CRDI (Delphi common rail direct injection)
Alternator	85 A, 12 V	70 A, 12 V

Pump Type	Gear pump, engine drive	Gear pump, engine driven
Implement Flow	8.2 gpm	8.2 gpm
Steering Flow	5.5 gpm	4.1 gpm
Total Hydraulic Flow	13.7 gpm	12.3 gpm
Overall Hydraulic Pump Flow	13.7 gpm	12.3 gpm
Hydraulic System Type	Open center	Open center system, position control
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	2 Pair	None
No. of Optional Remote Valves	Not Published	1 or 2 pairs (optional)

Fuel Tank Capacity	10.6 gal	7.4 gal
Coolant Capacity	Not Published	1.9 gal
Crankcase Capacity	Not Published	1.5 gal
Transmission / Hydraulic System Capacity	Not Published	8.5 gal
Front Axle Fluid Capacity	Not Published	1.7 gal

PTO Type	Independent	Independent (wet disc clutch)
PTO Rear	540 rpm	Standard (540 rpm)
Mid-PTO Availability	Optional (2,000 rpm)	Optional (2,000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,808 lb	1,808 lb
Hitch Lift Capacity (at 24”)	Not Published	1,433 lb
Lift Control Type	Position & Draft	Position control

Transmission Type	Hydrostatic (HST)	Synchro Shuttle
No. of Speeds	Infinite, 3 ranges (HST)	F12 x R12
Max Travel Speed (Forward)	Not Published	14.33 mph
Max Travel Speed (Reverse)	Not Published	13.63 mph
Clutch	Not Published	Dry single clutch
Differential Lock & Limited Slip Options	Mechanical differential lock (pedal)	Mechanical pedal type

Frame Type	Not Published	Not Published
Steering	Hydrostatic Power Steering	Hydrostatic power steering
Brakes	Wet, Multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	Front wheel mechanical assist (4WD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	Not Published	54 in
Wheelbase	66 in	69 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	10.79 ft (left); 11.02 ft (right)
Height to Top of ROPS	93 in	88 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Applicable	Not Published
Overall Length	124.3 in (frame to link)	121 in (frame to link)

Tractor Weight (Base)	3,285 lb	2,866 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Applicable	Not Published

Tire Size & Options	Ag, Industrial, Turf	Ag, industrial or turf tires at no additional cost
R1 Agricultural - Front	9.5-16	7-14
R1 Agricultural - Rear	14.9-24	11.2-24
R3 Turf - Front	25x8.5-14	25x8.50-14
R3 Turf - Rear	41x14-20	41x14-20
R4 Industrial - Front	25x8.5-14	27x8.50-14
R4 Industrial - Rear	43x16-20	43x16-20

Quick Attach Loader System	LL3116	Not Published
Loader Model	Not Published	LL3302
Loader Lift Height	Not Published	94 in
Loader Lift Capacity (Full Height)	LL3116: 2,185 lb	LL3302: 2,153 lb (at pivot pin, full height)
Loader Breakout Force	Not Published	LL3302: 3,579 lb (at pivot pin)

Warranty Length & Coverage	6-year limited powertrain warranty	6-year limited warranty

Find a LS Tractor dealer near you

LS Tractor MT335H vs LS Tractor MT235E: Quick Answers

Which has more horsepower, the LS Tractor MT335H or the LS Tractor MT235E?

They are effectively tied: both machines are rated at 35 hp hp for engine hp.

Which has more PTO horsepower, the LS Tractor MT335H or the LS Tractor MT235E?

The LS Tractor MT235E leads on pto hp at 29.7 hp hp, compared to 28 hp hp for the LS Tractor MT335H.

Which is heavier, the LS Tractor MT335H or the LS Tractor MT235E?

The LS Tractor MT335H leads on weight at 3,285 lb lb, compared to 2,866 lb lb for the LS Tractor MT235E.

Which has more loader lift capacity, the LS Tractor MT335H or the LS Tractor MT235E?

The LS Tractor MT335H leads on loader lift at 2,185 lb lb, compared to 2,153 lb lb for the LS Tractor MT235E.

Which has more three-point hitch lift capacity, the LS Tractor MT335H or the LS Tractor MT235E?

The LS Tractor MT335H leads on 3-pt lift (24 in) at 1,808 lb lb, compared to 1,433 lb lb for the LS Tractor MT235E.
