New Holland Workmaster 25 vs New Holland Workmaster 25S

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the New Holland Workmaster 25 leads 6 categories to 1 (1 tied). Machine pages: New Holland Workmaster 25 and New Holland Workmaster 25S.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	New Holland Workmaster 25	New Holland Workmaster 25S
Engine HP (hp)	24.4 hp	▲ 24.7 hp
PTO HP (hp)	▲ 17.3 hp	17.2 hp
Weight (lb)	—	1,444 lb
Loader Lift (lb)	▲ 1,600 lb	1,005 lb
3-Pt Lift (24 in) (lb)	▲ 1,433 lb	728 lb
Lift Height (in)	72 in	72 in
Breakout Force (lbf)	▲ 2,637 lbf	2,078 lbf
Hydraulic Flow (gpm)	▲ 12.5 gpm	6.7 gpm
Travel Speed (mph)	▲ 14.3 mph	9.1 mph

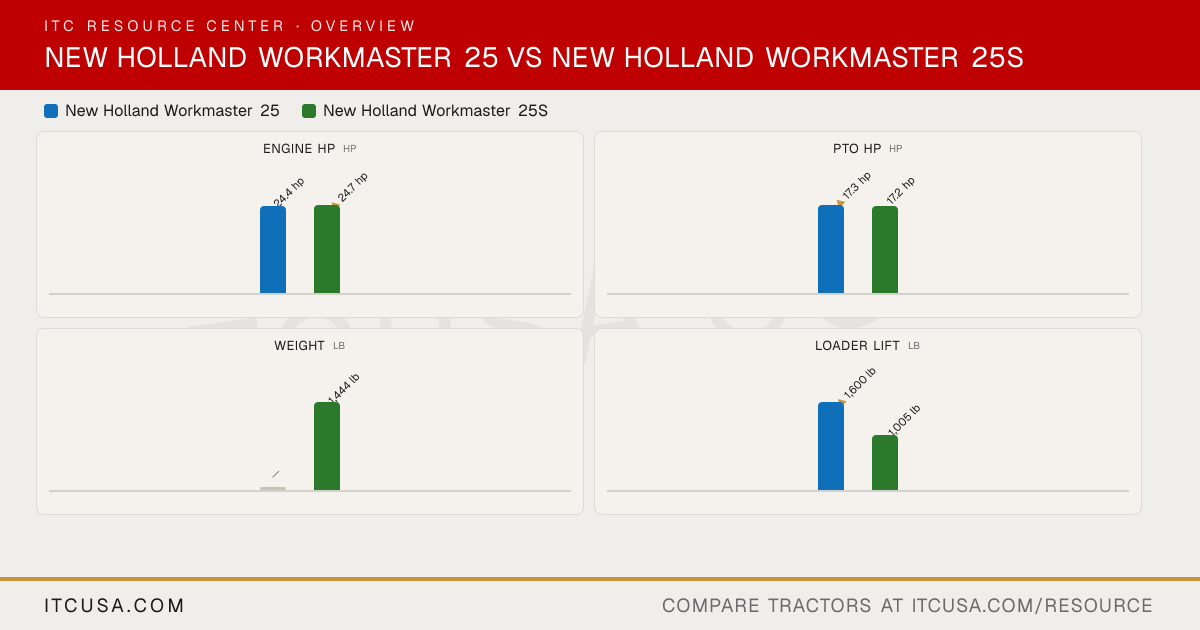

The headline numbers at a glance.

New Holland Workmaster 25New Holland Workmaster 25S

Engine HPhp

24.4 hp

▲24.7 hp

PTO HPhp

▲17.3 hp

17.2 hp

Weightlb

—

1,444 lb

Loader Liftlb

▲1,600 lb

1,005 lb

3-Pt Lift (24 in)lb

▲1,433 lb

728 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandWorkmaster 25	New HollandWorkmaster 25S


PTO Power	17.3 hp	17.2 hp
Alternator	50 A, 12 V	40 A, 12 V
Air Cleaner	Not Published	Not Published
Engine Type	3-cylinder, naturally aspirated diesel	3-cylinder, naturally aspirated diesel
Fuel System	In-line injection pump	In-line injection pump
Displacement	80.4 in³	76.9 in³
No. of Cylinders	3	3
Rated Engine Speed	2500 rpm	3000 rpm
Cooling System Type	Pressurized liquid with recirculating bypass	Pressurized liquid with recirculating bypass
Engine Manufacturer	Mitsubishi	Yanmar
Engine Power (Gross)	24.4 hp	24.7 hp
Engine Emissions Constraints	Tier 4B Final	Tier 4B Final

Weight with ROPS and Loader	Not Published	1,444 lb (ROPS tractor only)
Weight with Cab and Loader	Not Applicable	1,805 lb (Cab tractor only)

Warranty Length & Coverage	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)

Pump Type	Mechanical	Gear
Steering Flow	4.6 gpm	2.1 gpm
Implement Flow	7.9 gpm	4.6 gpm
Total Hydraulic Flow	12.5 gpm	6.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	12.5 gpm	6.7 gpm
No. of Optional Remote Valves	1 or 2	1
No. of Standard Remote Valves	0	0

PTO Rear	540 rpm	540 rpm
PTO Type	Independent, electro-hydraulic engagement	Independent, electro-hydraulic engagement
Lift Control Type	Position control	Lift-hold-lower
Hitch Lift Capacity	1,808 lb	992 lb at ball ends
Mid-PTO Availability	HST: Standard; Gear: Optional	Standard (2,500 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	1,433 lb	728 lb

R3 Turf - Rear	41X14.00-20	26X12.0-12
R3 Turf - Front	25X8.50-14	18X8.50-10
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R3 Turf, R4 Industrial
R4 Industrial - Rear	43X16-20	26X12.0-12
R4 Industrial - Front	25X8.50-14	18X8.50-10
R1 Agricultural - Rear	11.2-24	Not Applicable
R1 Agricultural - Front	7.0-14	Not Applicable

Coolant Capacity	5.2 qt	3.5 qt
Crankcase Capacity	4.4 qt	3.0 qt
Fuel Tank Capacity	7.4 gal	6.6 gal
Front Axle Fluid Capacity	6.9 qt	0.5 gal
Transmission / Hydraulic System Capacity	8.5 gal	3.0 gal

Loader Lift Height	72 in	72 in
Loader Breakout Force	2,637 lb	2,078 lb
Quick Attach Loader System	200LC: Quick Mount system; optional skid steer quick attach plates	100LC: Quick Mount system (no tools)
Loader Lift Capacity (Full Height)	1,600 lb	1,005 lb

Clutch	HST: Not Applicable; Gear: 9.4 in	Not Applicable
No. of Speeds	HST: 3-range; Gear: 12F/12R	Infinite (2-range)
Transmission Type	HST: 3-range hydrostatic; Gear: 12x12 mechanical shuttle	2-Range Hydrostatic / Dual Pedal
Max Travel Speed (Forward)	HST: 14.33 mph; Gear: 13.78 mph	9.1 mph
Max Travel Speed (Reverse)	HST: 10.79 mph; Gear: 13.10 mph	5.5 mph
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical, foot-operated rear diff lock

Brakes	Wet disc	Wet, multi-disc
Steering	Power steering	Central support, bevel gear type
Frame Type	Not Published	Not Published
Front Axle Type	4WD (FWD)	4WD (FWD)
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	65.9 in	56.1 in
Overall Width	54.1 in	46.7 in
Ground Clearance	13 in	12 in
Height to Top of ROPS	88.2 in	90 in
Height to Top of Cab Model	Not Applicable	87.4 in
Height to Top of ROPS (folded)	68.2 in	64 in
Min. Turn Radius without Brakes	120 in	94 in
Overall Length with 3-Point Hitch	131 in	97.4 in

New Holland Workmaster 25 vs New Holland Workmaster 25S: Quick Answers

Which has more horsepower, the New Holland Workmaster 25 or the New Holland Workmaster 25S?: The New Holland Workmaster 25S leads on engine hp at 24.7 hp hp, compared to 24.4 hp hp for the New Holland Workmaster 25.
Which has more PTO horsepower, the New Holland Workmaster 25 or the New Holland Workmaster 25S?: The New Holland Workmaster 25 leads on pto hp at 17.3 hp hp, compared to 17.2 hp hp for the New Holland Workmaster 25S.
Which has more loader lift capacity, the New Holland Workmaster 25 or the New Holland Workmaster 25S?: The New Holland Workmaster 25 leads on loader lift at 1,600 lb lb, compared to 1,005 lb lb for the New Holland Workmaster 25S.
Which has more three-point hitch lift capacity, the New Holland Workmaster 25 or the New Holland Workmaster 25S?: The New Holland Workmaster 25 leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 728 lb lb for the New Holland Workmaster 25S.
