Rural King RK24 vs TYM 2400

Across 9 measurable specs, the TYM 2400 leads 7 categories to 1 (1 tied). Machine pages: Rural King RK24 and TYM 2400.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Rural KingRK24	TYM2400

▶Engine
Engine Manufacturer	Yanmar	TYM
Engine Model	3TNV80F	T1100N2
Engine Type	Water cooled, 4-cycle diesel	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	77.3 in³	71.7 in³
Rated Engine Speed	3000 rpm	2850 rpm
Engine Power (Gross)	24 hp	24 hp
PTO Power	18.8 hp	21 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water cooled, forced circulation	Not Published
Air Cleaner	Single element	Dry element
Fuel System	Indirect fuel injection	IDI
Alternator	40 A, 12 V	60 A, 12 V
▶Hydraulics
Pump Type	Not Published	Dual gear pump
Implement Flow	4.18 gpm	4.7 gpm
Steering Flow	2.77 gpm	3.3 gpm
Total Hydraulic Flow	6.95 gpm	7.9 gpm
Overall Hydraulic Pump Flow	6.95 gpm	7.9 gpm
Hydraulic System Type	Live, independent	Dual gear pump
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	None
No. of Optional Remote Valves	Not Published	2
▶Fluid Capacity
Fuel Tank Capacity	5.81 gal	6.0 gal
Coolant Capacity	0.96 gal	5.3 qt
Crankcase Capacity	0.71 gal	2.9 qt
Transmission / Hydraulic System Capacity	3.83 gal	3.7 gal
Front Axle Fluid Capacity	0.85 gal	3.5 qt
▶PTO & Hitch
PTO Type	Independent	Live
PTO Rear	540 rpm	540/1000 rpm
Mid-PTO Availability	2,000 rpm	Available
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,323 lb	1,499 lb
Hitch Lift Capacity (at 24”)	1,058 lb	974 lb
Lift Control Type	Position	Position control
▶Transmission & Drivetrain
Transmission Type	2-range hydrostatic	2400R: Constant Mesh; 2400H: HST
No. of Speeds	2 ranges (high/low), infinite forward and reverse	2400R: F6 x R2; 2400H: 2-Range
Max Travel Speed (Forward)	11.2 mph	2400R: 9.9 mph; 2400H: 12.1 mph
Max Travel Speed (Reverse)	Not Published	2400R: 3.9 mph; 2400H: 12.1 mph
Clutch	Electro-hydraulic PTO clutch assembly (hydrostatic drive, no traction clutch)	Dry single plate
Differential Lock & Limited Slip Options	4WD with differential lock (bevel gears with diff-lock)	Differential lock
▶Chassis, Steering & Controls
Frame Type	Unit frame: engine, transmission and front axle support bolted together into a rigid assembly	Not Published
Steering	Hydrostatic power steering	Hydrostatic
Brakes	Wet disc, independent foot pedals that lock together	Wet, Multi disc
Seat Suspension & Adjustability	Suspension seat with armrests & retractable seat belt	Comfortable suspension seat
Front Axle Type	4WD, center-pivot reverse Eliot type	4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	45.8 in	44.2 in
Wheelbase	57.5 in	59.1 in
Ground Clearance	9.4 in	12.1 in
Min. Turn Radius without Brakes	Not Published	(L) 9.6 ft; (R) 9.5 ft
Height to Top of ROPS	91.3 in	87.3 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	100.5 in	120.3 in (with 3-point hitch)
▶Weight
Tractor Weight (Base)	1,610 lb	2400R: 1,792 lb; 2400H: 1,829 lb
Weight with ROPS and Loader	2,091 lb (1,610 + 481, computed)	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	Titan: R4 Industrial (Std), R3 Turf (Opt), R1 Agricultural (Opt), R14 (Opt)	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	6-12	6-12
R1 Agricultural - Rear	9.5-16	9.5-16
R3 Turf - Front	20x8-10	23x8.50-12
R3 Turf - Rear	29x12.5-15	33x12.50-16.5
R4 Industrial - Front	20x8-10	23x8.50-12
R4 Industrial - Rear	27x12.5-15	12-16.5
▶Loader & Attachments
Quick Attach Loader System	L75: skid-steer compatible quick-attach	BL100S: Quick attach mechanism
Loader Model	L75	BL100S
Loader Lift Height	L75: 75.3 in (maximum lift height to pivot pin)	BL100S: 88.3 in
Loader Lift Capacity (Full Height)	L75: 947 lb (at pivot pin, to full height)	BL100S: 1,314 lb (at pivot pin)
Loader Breakout Force	L75: 1,680 lb (at pivot pin)	BL100S: 1,960 lb (at pivot pin, ground level)
▶Warranty
Warranty Length & Coverage	Government and non-institutional: basic 24 months or 2,000 hours, powertrain 96 months or 3,000 hours; all other use: basic 24 months or 2,000 hours, powertrain 36 months or 3,000 hours	Basic 2 years or 2,000 hours; powertrain 3,000 hours maximum, parts and labor; loaders and backhoes 12 months
▶ITC Company Accessories
Accessories that fit	TYM T254 / T2505 Rural King RK24 Mahindra EMAXX 25 Brush Screen Insert $249.99	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99

Find a dealer near you→Find a TYM dealer near you→

Rural King RK24 vs TYM 2400: Quick Answers

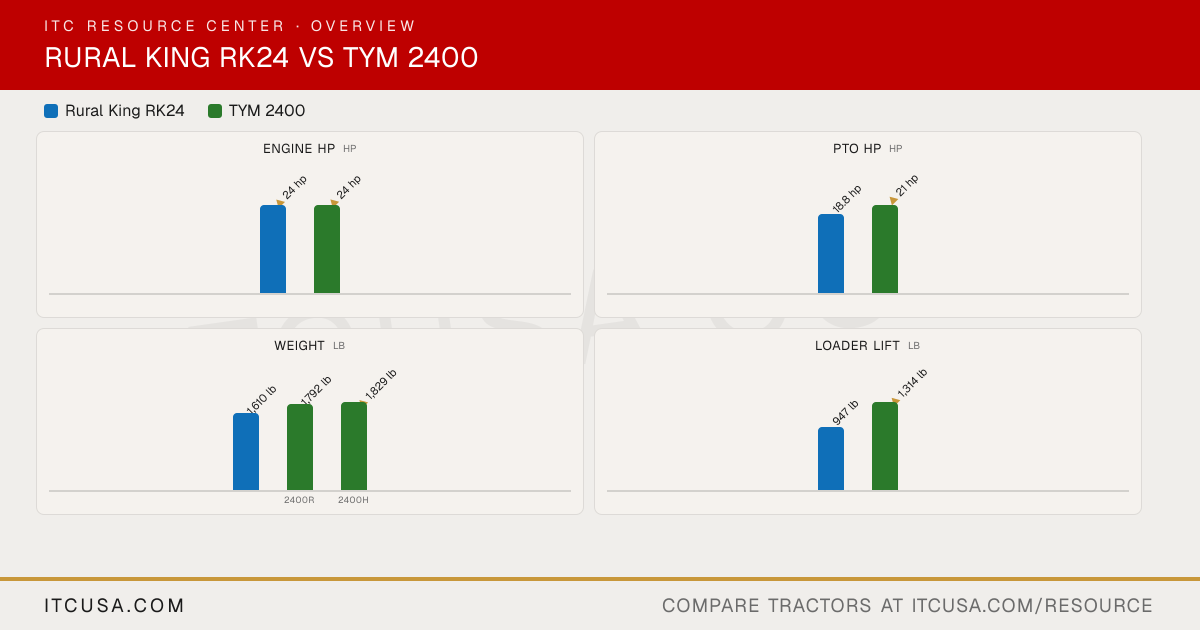

Which has more horsepower, the Rural King RK24 or the TYM 2400?

They are effectively tied: both machines are rated at 24 hp hp for engine hp.

Which has more PTO horsepower, the Rural King RK24 or the TYM 2400?

The TYM 2400 leads on pto hp at 21 hp hp, compared to 18.8 hp hp for the Rural King RK24.

Which is heavier, the Rural King RK24 or the TYM 2400?

The TYM 2400 leads on weight at 1,829 lb lb, compared to 1,610 lb lb for the Rural King RK24.

Which has more loader lift capacity, the Rural King RK24 or the TYM 2400?

The TYM 2400 leads on loader lift at 1,314 lb lb, compared to 947 lb lb for the Rural King RK24.

Which has more three-point hitch lift capacity, the Rural King RK24 or the TYM 2400?

The Rural King RK24 leads on 3-pt lift (24 in) at 1,058 lb lb, compared to 974 lb lb for the TYM 2400.
