Which has more horsepower, the TYM 2400 or the TYM T224?

The TYM 2400 leads on engine hp at 24 hp hp, compared to 21.5 hp hp for the TYM T224.

Which has more PTO horsepower, the TYM 2400 or the TYM T224?

The TYM 2400 leads on pto hp at 21 hp hp, compared to 15.1 hp hp for the TYM T224.

Which has more loader lift capacity, the TYM 2400 or the TYM T224?

The TYM 2400 leads on loader lift at 1,314 lb lb, compared to 617 lb lb for the TYM T224.

Which has more three-point hitch lift capacity, the TYM 2400 or the TYM T224?

The TYM 2400 leads on 3-pt lift (24 in) at 974 lb lb, compared to 679 lb lb for the TYM T224.

TYM 2400 vs TYM T224

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the TYM 2400 leads 8 categories to 0. Machine pages: TYM 2400 and TYM T224.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	TYM 2400	TYM T224
Engine HP (hp)	▲ 24 hp	21.5 hp
PTO HP (hp)	▲ 21 hp	15.1 hp
Loader Lift (lb)	▲ 1,314 lb	617 lb
3-Pt Lift (24 in) (lb)	▲ 974 lb	679 lb
Lift Height (in)	▲ 88.3 in	71.3 in
Breakout Force (lbf)	▲ 1,960 lbf	1,235 lbf
Hydraulic Flow (gpm)	▲ 7.9 gpm	6.7 gpm
Travel Speed (mph)	▲ 12.1 mph	8.4 mph

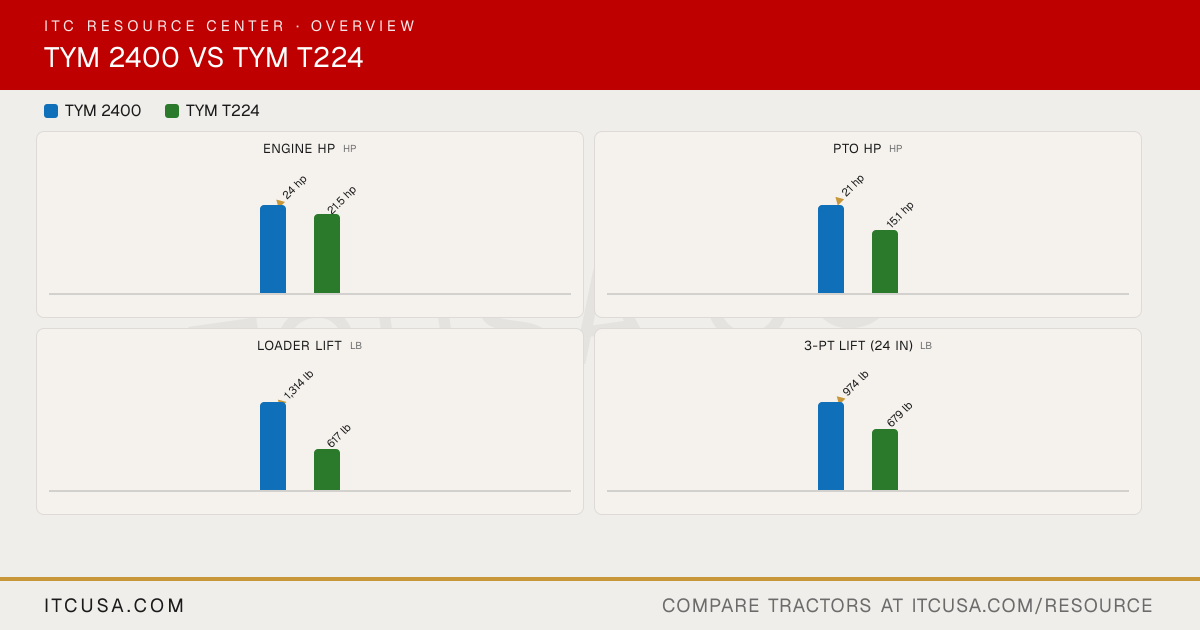

The headline numbers at a glance.

TYM 2400TYM T224

Engine HPhp

▲24 hp

21.5 hp

PTO HPhp

▲21 hp

15.1 hp

Weightlb

—

Loader Liftlb

▲1,314 lb

617 lb

3-Pt Lift (24 in)lb

▲974 lb

679 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYM2400	TYMT224


PTO Power	21 hp	15.1 hp
Alternator	60 A, 12 V	40 A, 12 V
Air Cleaner	Dry element	Single dry
Engine Type	3-cylinder, naturally aspirated diesel	3-cylinder, naturally aspirated diesel
Fuel System	IDI	IDI
Displacement	71.7 in³	60.6 in³
No. of Cylinders	3	3
Rated Engine Speed	2850 rpm	3200 rpm
Cooling System Type	Not Published	Water-cooled
Engine Manufacturer	TYM	Yanmar
Engine Power (Gross)	24 hp	21.5 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Applicable	Not Published

Warranty Length & Coverage	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Dual gear pump	Single gear pump
Steering Flow	3.3 gpm	2.1 gpm
Implement Flow	4.7 gpm	4.6 gpm
Total Hydraulic Flow	7.9 gpm	6.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	7.9 gpm	6.7 gpm
No. of Optional Remote Valves	2	1
No. of Standard Remote Valves	0	Not Published

PTO Rear	540/1000 rpm	540 rpm
PTO Type	Live	Independent
Lift Control Type	Position control	Position control
Hitch Lift Capacity	1,499 lb	1,100 lb
Mid-PTO Availability	Not Published	Available
Category, 3-Point Hitch	Category I	Category I (Narrow)
Hitch Lift Capacity (at 24”)	974 lb	679 lb

R3 Turf - Rear	33x12.50-16.5	Turf Master 24x12.00-12 NHS TL 4PR
R3 Turf - Front	23x8.50-12	Turf Master 16x7.50-8 NHS TL 4PR
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	12-16.5	WT300 26x12.00-12 NHS TL 4PR
R4 Industrial - Front	23x8.50-12	WT300 18x8.5-10 NHS TL 4PR
R1 Agricultural - Rear	9.5-16	BAR R 24x12.00-12
R1 Agricultural - Front	6.0-12	BAR F 16x6.50-8

Coolant Capacity	5.3 qt	3.7 qt
Crankcase Capacity	2.9 qt	1.9 qt
Fuel Tank Capacity	6.0 gal	6.6 gal
Front Axle Fluid Capacity	3.5 qt	2.6 qt
Transmission / Hydraulic System Capacity	3.7 gal	3.6 gal

Loader Lift Height	88.3 in	71.3 in
Loader Breakout Force	1,960 lb	1,235 lb
Quick Attach Loader System	BL100S: Skid-type quick attachment	TX22H: Quick attach mechanism
Loader Lift Capacity (Full Height)	1,314 lb	617 lb

Clutch	Dry single plate	Not applicable
No. of Speeds	Gear: F6 x R2; HST: 2-Range	Infinite 2-Range
Transmission Type	Gear: Constant Mesh; HST: HST	HST
Max Travel Speed (Forward)	Gear: 9.9 mph; HST: 12.1 mph	8.4 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Differential lock

Brakes	Wet, multi disc	Wet disc
Steering	Hydrostatic	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	4WD	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Comfortable suspension seat	Not Published

Wheelbase	59.1 in	53.1 in
Overall Width	44.2 in	44.5 in
Ground Clearance	12.1 in	8.3 in
Height to Top of ROPS	87.3 in	86.6 in
Height to Top of Cab Model	Not Applicable	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	115.4 in	86.6 in
Overall Length with 3-Point Hitch	120.3 in	94.2 in

Accessories that fit	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99	None tagged yet

TYM 2400 vs TYM T224: Quick Answers

Which has more horsepower, the TYM 2400 or the TYM T224?: The TYM 2400 leads on engine hp at 24 hp hp, compared to 21.5 hp hp for the TYM T224.
Which has more PTO horsepower, the TYM 2400 or the TYM T224?: The TYM 2400 leads on pto hp at 21 hp hp, compared to 15.1 hp hp for the TYM T224.
Which has more loader lift capacity, the TYM 2400 or the TYM T224?: The TYM 2400 leads on loader lift at 1,314 lb lb, compared to 617 lb lb for the TYM T224.
Which has more three-point hitch lift capacity, the TYM 2400 or the TYM T224?: The TYM 2400 leads on 3-pt lift (24 in) at 974 lb lb, compared to 679 lb lb for the TYM T224.
