Which has more horsepower, the TYM T224 or the TYM T254?

The TYM T254 leads on engine hp at 23.9 hp hp, compared to 21.5 hp hp for the TYM T224.

Which has more PTO horsepower, the TYM T224 or the TYM T254?

The TYM T254 leads on pto hp at 18.8 hp hp, compared to 15.1 hp hp for the TYM T224.

Which has more loader lift capacity, the TYM T224 or the TYM T254?

The TYM T254 leads on loader lift at 948 lb lb, compared to 617 lb lb for the TYM T224.

Which has more three-point hitch lift capacity, the TYM T224 or the TYM T254?

The TYM T254 leads on 3-pt lift (24 in) at 1,101 lb lb, compared to 679 lb lb for the TYM T224.

TYM T224 vs TYM T254

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the TYM T254 leads 8 categories to 0. Machine pages: TYM T224 and TYM T254.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	TYM T224	TYM T254
Engine HP (hp)	21.5 hp	▲ 23.9 hp
PTO HP (hp)	15.1 hp	▲ 18.8 hp
Loader Lift (lb)	617 lb	▲ 948 lb
3-Pt Lift (24 in) (lb)	679 lb	▲ 1,101 lb
Lift Height (in)	71.3 in	▲ 75 in
Breakout Force (lbf)	1,235 lbf	▲ 1,680 lbf
Hydraulic Flow (gpm)	6.7 gpm	▲ 6.9 gpm
Travel Speed (mph)	8.4 mph	▲ 11 mph

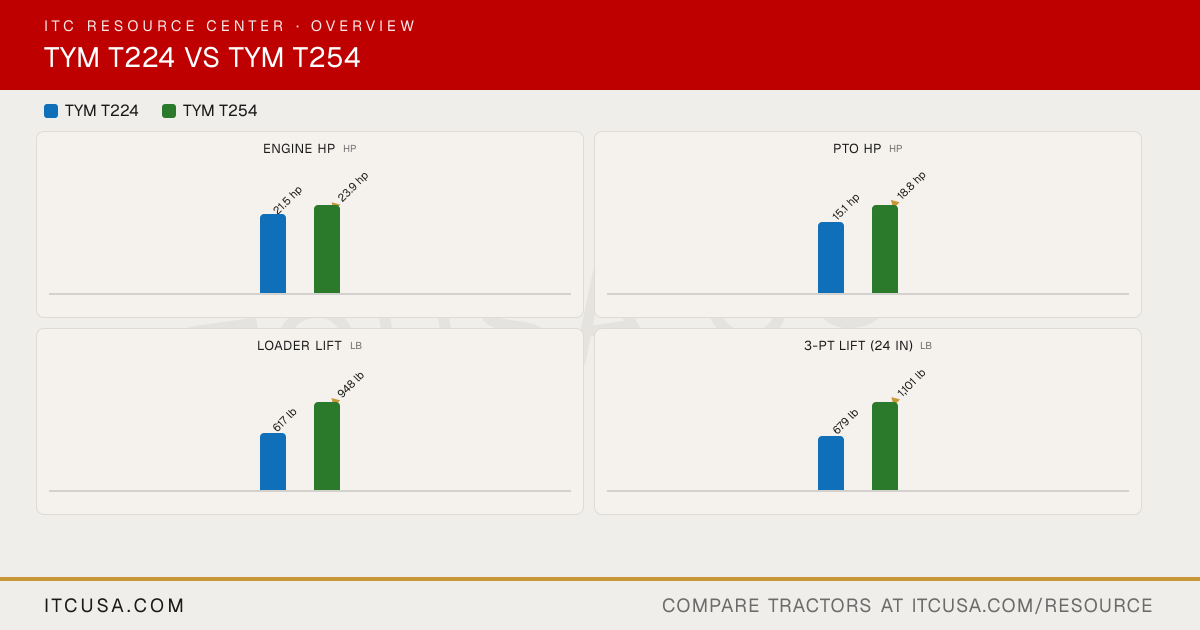

The headline numbers at a glance.

TYM T224TYM T254

Engine HPhp

21.5 hp

▲23.9 hp

PTO HPhp

15.1 hp

▲18.8 hp

Weightlb

—

Loader Liftlb

617 lb

▲948 lb

3-Pt Lift (24 in)lb

679 lb

▲1,101 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYMT224	TYMT254


PTO Power	15.1 hp	18.8 hp
Alternator	40 A, 12 V	40 A, 12 V
Air Cleaner	Single dry	Single dry
Engine Type	3-cylinder, naturally aspirated diesel	3-cylinder, naturally aspirated diesel
Fuel System	IDI	IDI
Displacement	60.6 in³	77.3 in³
No. of Cylinders	3	3
Rated Engine Speed	3200 rpm	3000 rpm
Cooling System Type	Water-cooled	Water-cooled
Engine Manufacturer	Yanmar	Yanmar
Engine Power (Gross)	21.5 hp	23.9 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Warranty Length & Coverage	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Single gear pump	Single gear pump
Steering Flow	2.1 gpm	2.8 gpm
Implement Flow	4.6 gpm	4.2 gpm
Total Hydraulic Flow	6.7 gpm	6.9 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	6.7 gpm	6.9 gpm
No. of Optional Remote Valves	1	1
No. of Standard Remote Valves	Not Published	0

PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position control	Position control
Hitch Lift Capacity	1,100 lb	1,214 lb
Mid-PTO Availability	Available	Available
Category, 3-Point Hitch	Category I (Narrow)	Category I (Narrow)
Hitch Lift Capacity (at 24”)	679 lb	1,101 lb

R3 Turf - Rear	Turf Master 24x12.00-12 NHS TL 4PR	29x12.50-15
R3 Turf - Front	Turf Master 16x7.50-8 NHS TL 4PR	20x8.00-10
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial; R4 Lg Industrial (optional)
R4 Industrial - Rear	WT300 26x12.00-12 NHS TL 4PR	27x12.5-15; 12-16.5
R4 Industrial - Front	WT300 18x8.5-10 NHS TL 4PR	20x8.00-10; 23x8.50-12
R1 Agricultural - Rear	BAR R 24x12.00-12	9.5-16
R1 Agricultural - Front	BAR F 16x6.50-8	6.0-12

Coolant Capacity	3.7 qt	3.8 qt
Crankcase Capacity	1.9 qt	2.9 qt
Fuel Tank Capacity	6.6 gal	5.8 gal
Front Axle Fluid Capacity	2.6 qt	3.7 qt
Transmission / Hydraulic System Capacity	3.6 gal	3.7 gal

Loader Lift Height	71.3 in	75 in
Loader Breakout Force	1,235 lb	1,680 lb
Quick Attach Loader System	TX22H: Quick attach mechanism	TX25P: Quick attach mechanism
Loader Lift Capacity (Full Height)	617 lb	948 lb

Clutch	Not applicable	Not applicable
No. of Speeds	Infinite 2-Range	Infinite 2-Range
Transmission Type	HST	HST
Max Travel Speed (Forward)	8.4 mph	11.0 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Differential lock	Differential lock

Brakes	Wet disc	Wet disc
Steering	Hydrostatic	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Ergonomic seating

Wheelbase	53.1 in	57.5 in
Overall Width	44.5 in	45.8 in
Ground Clearance	8.3 in	9.4 in
Height to Top of ROPS	86.6 in	91.3 in
Height to Top of Cab Model	Not Published	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	86.6 in	100 in
Overall Length with 3-Point Hitch	94.2 in	100.5 in

Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection RK24/T254 /BRANSON 2505/EMAX 25 Skid Plate $89.99

TYM T224 vs TYM T254: Quick Answers

Which has more horsepower, the TYM T224 or the TYM T254?: The TYM T254 leads on engine hp at 23.9 hp hp, compared to 21.5 hp hp for the TYM T224.
Which has more PTO horsepower, the TYM T224 or the TYM T254?: The TYM T254 leads on pto hp at 18.8 hp hp, compared to 15.1 hp hp for the TYM T224.
Which has more loader lift capacity, the TYM T224 or the TYM T254?: The TYM T254 leads on loader lift at 948 lb lb, compared to 617 lb lb for the TYM T224.
Which has more three-point hitch lift capacity, the TYM T224 or the TYM T254?: The TYM T254 leads on 3-pt lift (24 in) at 1,101 lb lb, compared to 679 lb lb for the TYM T224.
