TYM T254 vs TYM T3025

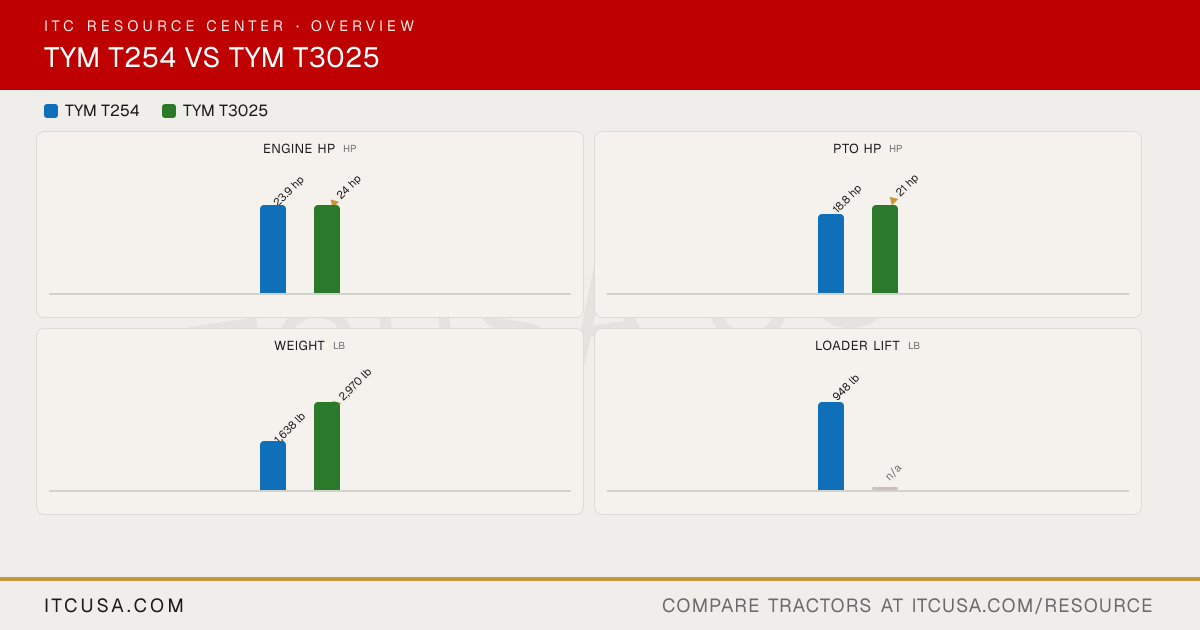

Across 6 measurable specs, the TYM T3025 leads 6 categories to 0. Machine pages: TYM T254 and TYM T3025.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYMT254	TYMT3025

▶Engine
Engine Manufacturer	Yanmar	TYM
Engine Model	3TNV80F	T1700N6
Engine Type	3-cylinder, naturally aspirated diesel	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	77.3 in³	104.5 in³
Rated Engine Speed	3000 rpm	2100 rpm
Engine Power (Gross)	23.9 hp	24 hp
PTO Power	18.8 hp	21 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Not Published
Air Cleaner	Single dry	Dry element
Fuel System	IDI	IDI (indirect injection)
Alternator	40 A, 12 V	50 A, 12 V
▶Hydraulics
Pump Type	Single gear pump	Dual gear pump
Implement Flow	4.2 gpm	7.5 gpm
Steering Flow	2.8 gpm	4.0 gpm
Total Hydraulic Flow	6.9 gpm	11.5 gpm
Overall Hydraulic Pump Flow	6.9 gpm	11.5 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	None	Loader: 4 / Rear: 0
No. of Optional Remote Valves	1	Up to 4
▶Fluid Capacity
Fuel Tank Capacity	5.8 gal	8.7 gal
Coolant Capacity	3.8 qt	5.3 qt
Crankcase Capacity	2.9 qt	4.5 qt
Transmission / Hydraulic System Capacity	3.7 gal	T3025R: 8.9 gal; T3025H: 9.8 gal
Front Axle Fluid Capacity	3.7 qt	6.8 qt
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Available	Not Published
Category, 3-Point Hitch	Category I (Narrow)	Category I
Hitch Lift Capacity	1,214 lb	3,307 lb
Hitch Lift Capacity (at 24”)	1,101 lb	2,425 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	HST	T3025R: Synchromesh; T3025H: HST
No. of Speeds	Infinite 2-Range	T3025R: F12 x R12; T3025H: 3-Range
Max Travel Speed (Forward)	11.0 mph	T3025R: 11.7 mph; T3025H: 16.7 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	T3025R: Dry single plate; T3025H: N/A
Differential Lock & Limited Slip Options	Differential lock	Not Published
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic	Hydrostatic
Brakes	Wet disc	Wet, multi-disc
Seat Suspension & Adjustability	Ergonomic seating	Suspension seat
Front Axle Type	4WD center-pivot, reverse Eliot type	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	45.8 in	56.3 in
Wheelbase	57.5 in	65.7 in
Ground Clearance	9.4 in	14.4 in
Min. Turn Radius without Brakes	100 in	105.5 in
Height to Top of ROPS	91.3 in	97.2 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	100.5 in (with 3-point hitch)	121 in (with 3-point hitch)
▶Weight
Tractor Weight (Base)	1,638 lb (with ROPS)	2,970 lb (with ROPS)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial, R4 Lg Industrial	R1 Agricultural 8-16 / 12.4-24; R3 Turf 27x8.5-15 / 41x14.00; R4 Industrial 10-16.5 / 420/70-24
R1 Agricultural - Front	6.0-12	8-16
R1 Agricultural - Rear	9.5-16	12.4-24
R3 Turf - Front	Turf Master 20x8.00-10 NHS TL 4PR	27x8.5-15
R3 Turf - Rear	Multi-Trac CS 29x12.50-15 NHS TL 4PR	41x14.00
R4 Industrial - Front	Trac Chief 20x8.00-10 NHS TL 4PR	10-16.5
R4 Industrial - Rear	Trac Chief 27x12.5-15 NHS TL 4PR	420/70-24
▶Loader & Attachments
Quick Attach Loader System	TX25P: Quick attach mechanism	Not Published
Loader Model	TX25P	Not Published
Loader Lift Height	TX25P: 75 in	Not Published
Loader Lift Capacity (Full Height)	TX25P: 948 lb (at pivot pin)	Not Published
Loader Breakout Force	TX25P: 1,680 lb (at pivot pin, ground level)	Not Published
▶Warranty
Warranty Length & Coverage	Basic 24 months or 2,000 hours, parts and labor; non-commercial, 20 to 70 engine hp: powertrain 72 months or 3,000 hours; loaders, backhoes and mid-mount mowers 12 months	Basic 24 months or 2,000 hours, parts and labor; non-commercial, 20 to 70 engine hp: powertrain 72 months or 3,000 hours; loaders, backhoes and mid-mount mowers 12 months
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection RK24/T254 /BRANSON 2505/EMAX 25 Skid Plate $89.99 TYM T254 / T2505 Rural King RK24 Mahindra EMAXX 25 Brush Screen Insert $249.99	None tagged yet

Find a TYM dealer near you→

TYM T254 vs TYM T3025: Quick Answers

Which has more horsepower, the TYM T254 or the TYM T3025?

The TYM T3025 leads on engine hp at 24 hp hp, compared to 23.9 hp hp for the TYM T254.

Which has more PTO horsepower, the TYM T254 or the TYM T3025?

The TYM T3025 leads on pto hp at 21 hp hp, compared to 18.8 hp hp for the TYM T254.

Which is heavier, the TYM T254 or the TYM T3025?

The TYM T3025 leads on weight at 2,970 lb lb, compared to 1,638 lb lb for the TYM T254.

Which has more three-point hitch lift capacity, the TYM T254 or the TYM T3025?

The TYM T3025 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,101 lb lb for the TYM T254.
