New Holland Workmaster 25 vs TYM T234

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the New Holland Workmaster 25 leads 8 categories to 0 (1 tied). Machine pages: New Holland Workmaster 25 and TYM T234.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	New Holland Workmaster 25	TYM T234
Engine HP (hp)	24.4 hp	24.4 hp
PTO HP (hp)	▲ 19.2 hp	18.3 hp
Weight (lb)	▲ 2,469 lb	1,907 lb
Loader Lift (lb)	▲ 1,600 lb	1,380 lb
3-Pt Lift (24 in) (lb)	▲ 1,433 lb	1,102 lb
Lift Height (in)	▲ 94.3 in	86.9 in
Breakout Force (lbf)	▲ 2,637 lbf	2,059 lbf
Hydraulic Flow (gpm)	▲ 12.5 gpm	6.7 gpm
Travel Speed (mph)	▲ 15.3 mph	9.6 mph

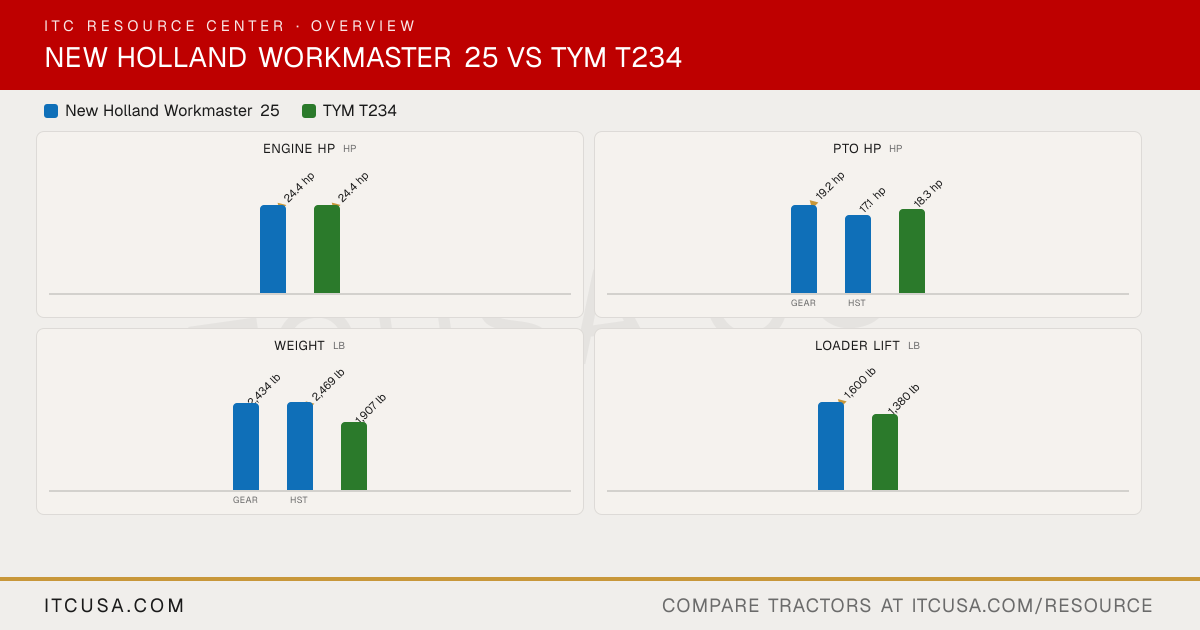

The headline numbers at a glance.

New Holland Workmaster 25TYM T234

Engine HPhp

▲24.4 hp

PTO HPhp

▲19.2 hp

17.1 hp

18.3 hp

GearHST

Weightlb

2,434 lb

▲2,469 lb

1,907 lb

GearHST

Loader Liftlb

▲1,600 lb

1,380 lb

3-Pt Lift (24 in)lb

▲1,433 lb

1,102 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandWorkmaster 25	TYMT234


Engine Manufacturer	Mitsubishi	Mitsubishi
Engine Model	S3L2-W461GT	S3L2
Engine Type	3-cylinder, naturally aspirated, liquid-cooled diesel	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	80.4 in³	80.4 in³
Rated Engine Speed	2500 rpm	2500 rpm
Engine Power (Gross)	24.4 hp	24.4 hp
PTO Power	Gear: 19.2 hp; HST: 17.1 hp	18.3 hp
Engine Emissions Constraints	Tier 4B (final)	Tier 4
Cooling System Type	Pressurized liquid with recirculating bypass	Liquid-cooled
Air Cleaner	Dual element air cleaner (outer and inner element)	Dual dry
Fuel System	In-line injection pump	Indirect fuel injection
Alternator	50 A, 12 V	50 A, 12 V

Pump Type	Mechanical	Dual gear pump
Implement Flow	7.9 gpm	4.4 gpm
Steering Flow	4.6 gpm	2.3 gpm
Total Hydraulic Flow	12.5 gpm	6.7 gpm
Overall Hydraulic Pump Flow	12.5 gpm	6.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	1 or 2	1

Fuel Tank Capacity	7.4 gal	6.6 gal
Coolant Capacity	1.3 gal	5.9 qt
Crankcase Capacity	4.4 qt	4.5 qt
Transmission / Hydraulic System Capacity	8.5 gal	5.8 gal
Front Axle Fluid Capacity	6.9 qt	4.7 qt

PTO Type	Independent, electro-hydraulic engagement	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	HST: Standard; Gear: Optional (2,000 rpm)	Available
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,808 lb	1,534 lb
Hitch Lift Capacity (at 24”)	1,433 lb	1,102 lb
Lift Control Type	Position control	Position control

Transmission Type	Gear: 12x12 synchronized shuttle; HST: 3-range hydrostatic, dual pedal	HST
No. of Speeds	Gear: 12F/12R; HST: 3-range	Infinite / 2 Range
Max Travel Speed (Forward)	HST: 15.3 mph; Gear: 13.8 mph	9.6 mph
Max Travel Speed (Reverse)	Gear: 13.10 mph; HST: 10.79 mph	Not Published
Clutch	Gear: 9.4 in disc; HST: Not applicable	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Not Published

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	54.1 in	52.8 in
Wheelbase	65.9 in	58.3 in
Ground Clearance	13 in	7.71 in
Min. Turn Radius without Brakes	120 in (left turn); 129.8 in (right turn)	105.5 in
Height to Top of ROPS	88.2 in	89.8 in
Height to Top of ROPS (folded)	68.2 in	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	117.2 in	107.8 in (with 3-point hitch)

Tractor Weight (Base)	Gear: 2,434 lb; HST: 2,469 lb	1,907 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R4 Industrial
R1 Agricultural - Front	7-14	Not Published
R1 Agricultural - Rear	11.2-24	Not Published
R3 Turf - Front	25x8.50-14	Not Published
R3 Turf - Rear	41x14.00-20	Not Published
R4 Industrial - Front	25x8.50-14	23x8.5-12
R4 Industrial - Rear	43x16-20	12x16.5

Quick Attach Loader System	200LC: tool-free quick-mount system; optional skid-steer quick-attach plates	TX2000: Quick attach mechanism
Loader Model	200LC	TX2000
Loader Lift Height	200LC: 94.3 in (at pivot pin)	TX2000: 86.9 in (at pivot pin)
Loader Lift Capacity (Full Height)	200LC: 1,600 lb (at bucket pivot pin, max height)	TX2000: 1,380 lb (at pivot pin)
Loader Breakout Force	200LC: 2,637 lb (at bucket pivot pin)	TX2000: 2,059 lb (at pivot pin, ground level)

Warranty Length & Coverage	Basic 2 years or 750 hours; powertrain to 6 years or 1,500 hours total	Not Published

Find a New Holland dealer near you Find a TYM dealer near you

New Holland Workmaster 25 vs TYM T234: Quick Answers

Which has more horsepower, the New Holland Workmaster 25 or the TYM T234?: They are effectively tied: both machines are rated at 24.4 hp hp for engine hp.
Which has more PTO horsepower, the New Holland Workmaster 25 or the TYM T234?: The New Holland Workmaster 25 leads on pto hp at 19.2 hp hp, compared to 18.3 hp hp for the TYM T234.
Which is heavier, the New Holland Workmaster 25 or the TYM T234?: The New Holland Workmaster 25 leads on weight at 2,469 lb lb, compared to 1,907 lb lb for the TYM T234.
Which has more loader lift capacity, the New Holland Workmaster 25 or the TYM T234?: The New Holland Workmaster 25 leads on loader lift at 1,600 lb lb, compared to 1,380 lb lb for the TYM T234.
Which has more three-point hitch lift capacity, the New Holland Workmaster 25 or the TYM T234?: The New Holland Workmaster 25 leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 1,102 lb lb for the TYM T234.

More Head-to-Heads

Category Verdict

Spec	New Holland Workmaster 25	TYM T234
Engine HP (hp)	24.4 hp	24.4 hp
PTO HP (hp)	▲ 19.2 hp	18.3 hp
Weight (lb)	▲ 2,469 lb	1,907 lb
Loader Lift (lb)	▲ 1,600 lb	1,380 lb
3-Pt Lift (24 in) (lb)	▲ 1,433 lb	1,102 lb
Lift Height (in)	▲ 94.3 in	86.9 in
Breakout Force (lbf)	▲ 2,637 lbf	2,059 lbf
Hydraulic Flow (gpm)	▲ 12.5 gpm	6.7 gpm
Travel Speed (mph)	▲ 15.3 mph	9.6 mph

The headline numbers at a glance.

New Holland Workmaster 25TYM T234

Engine HPhp

▲24.4 hp

PTO HPhp

▲19.2 hp

17.1 hp

18.3 hp

GearHST

Weightlb

2,434 lb

▲2,469 lb

1,907 lb

GearHST

Loader Liftlb

▲1,600 lb

1,380 lb

3-Pt Lift (24 in)lb

▲1,433 lb

1,102 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandWorkmaster 25	TYMT234


Engine Manufacturer	Mitsubishi	Mitsubishi
Engine Model	S3L2-W461GT	S3L2
Engine Type	3-cylinder, naturally aspirated, liquid-cooled diesel	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	80.4 in³	80.4 in³
Rated Engine Speed	2500 rpm	2500 rpm
Engine Power (Gross)	24.4 hp	24.4 hp
PTO Power	Gear: 19.2 hp; HST: 17.1 hp	18.3 hp
Engine Emissions Constraints	Tier 4B (final)	Tier 4
Cooling System Type	Pressurized liquid with recirculating bypass	Liquid-cooled
Air Cleaner	Dual element air cleaner (outer and inner element)	Dual dry
Fuel System	In-line injection pump	Indirect fuel injection
Alternator	50 A, 12 V	50 A, 12 V

Pump Type	Mechanical	Dual gear pump
Implement Flow	7.9 gpm	4.4 gpm
Steering Flow	4.6 gpm	2.3 gpm
Total Hydraulic Flow	12.5 gpm	6.7 gpm
Overall Hydraulic Pump Flow	12.5 gpm	6.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	1 or 2	1

Fuel Tank Capacity	7.4 gal	6.6 gal
Coolant Capacity	1.3 gal	5.9 qt
Crankcase Capacity	4.4 qt	4.5 qt
Transmission / Hydraulic System Capacity	8.5 gal	5.8 gal
Front Axle Fluid Capacity	6.9 qt	4.7 qt

PTO Type	Independent, electro-hydraulic engagement	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	HST: Standard; Gear: Optional (2,000 rpm)	Available
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,808 lb	1,534 lb
Hitch Lift Capacity (at 24”)	1,433 lb	1,102 lb
Lift Control Type	Position control	Position control

Transmission Type	Gear: 12x12 synchronized shuttle; HST: 3-range hydrostatic, dual pedal	HST
No. of Speeds	Gear: 12F/12R; HST: 3-range	Infinite / 2 Range
Max Travel Speed (Forward)	HST: 15.3 mph; Gear: 13.8 mph	9.6 mph
Max Travel Speed (Reverse)	Gear: 13.10 mph; HST: 10.79 mph	Not Published
Clutch	Gear: 9.4 in disc; HST: Not applicable	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Not Published

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	54.1 in	52.8 in
Wheelbase	65.9 in	58.3 in
Ground Clearance	13 in	7.71 in
Min. Turn Radius without Brakes	120 in (left turn); 129.8 in (right turn)	105.5 in
Height to Top of ROPS	88.2 in	89.8 in
Height to Top of ROPS (folded)	68.2 in	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	117.2 in	107.8 in (with 3-point hitch)

Tractor Weight (Base)	Gear: 2,434 lb; HST: 2,469 lb	1,907 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R4 Industrial
R1 Agricultural - Front	7-14	Not Published
R1 Agricultural - Rear	11.2-24	Not Published
R3 Turf - Front	25x8.50-14	Not Published
R3 Turf - Rear	41x14.00-20	Not Published
R4 Industrial - Front	25x8.50-14	23x8.5-12
R4 Industrial - Rear	43x16-20	12x16.5

Quick Attach Loader System	200LC: tool-free quick-mount system; optional skid-steer quick-attach plates	TX2000: Quick attach mechanism
Loader Model	200LC	TX2000
Loader Lift Height	200LC: 94.3 in (at pivot pin)	TX2000: 86.9 in (at pivot pin)
Loader Lift Capacity (Full Height)	200LC: 1,600 lb (at bucket pivot pin, max height)	TX2000: 1,380 lb (at pivot pin)
Loader Breakout Force	200LC: 2,637 lb (at bucket pivot pin)	TX2000: 2,059 lb (at pivot pin, ground level)

Warranty Length & Coverage	Basic 2 years or 750 hours; powertrain to 6 years or 1,500 hours total	Not Published

Find a New Holland dealer near you Find a TYM dealer near you

New Holland Workmaster 25 vs TYM T234: Quick Answers

Which has more horsepower, the New Holland Workmaster 25 or the TYM T234?

They are effectively tied: both machines are rated at 24.4 hp hp for engine hp.

Which has more PTO horsepower, the New Holland Workmaster 25 or the TYM T234?

The New Holland Workmaster 25 leads on pto hp at 19.2 hp hp, compared to 18.3 hp hp for the TYM T234.

Which is heavier, the New Holland Workmaster 25 or the TYM T234?

The New Holland Workmaster 25 leads on weight at 2,469 lb lb, compared to 1,907 lb lb for the TYM T234.

Which has more loader lift capacity, the New Holland Workmaster 25 or the TYM T234?

The New Holland Workmaster 25 leads on loader lift at 1,600 lb lb, compared to 1,380 lb lb for the TYM T234.

Which has more three-point hitch lift capacity, the New Holland Workmaster 25 or the TYM T234?

The New Holland Workmaster 25 leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 1,102 lb lb for the TYM T234.
